Military tent S-65

We manufacture military tents according to the requirements of our customers. One of the most popular military tents is the S-65 military tent, which can be manufactured in PVC or TENT variants.

Product sheet - Tent parts of the military tent S-65

Front and rear part

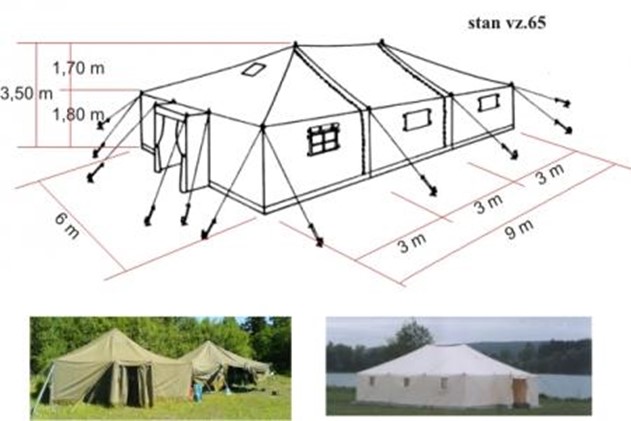

• base size 6 m x 3 m; other dimensions according to the drawing documentation;
• window on both sides with the possibility of placing a plexiglass panel measuring 49 cm x 57 cm, 250g/m² mesh with a strength of 1900N/5cm strip in the warp and 1825N/5cm strip in the weft, window cover (rolled up above each window) made of tent material;
• own entrance 140 cm wide and 180 cm high;
• in the front upper part, a hole for storing a smoke insert measuring 45 cm x 56 cm, a cover for the hole in case the smoke insert is not used (made of tent material);
• use throughout the year in the range of outdoor temperatures from -35 to +70 °C and relative humidity from 30 to 80%;
• compatible attachment of a warming and hygienic insert, from already used tents, into the olives on the inner wall of the tent;
• connection with the front and rear part or with the extension part of the tent model. 65 provides double lacing using olives and loops,

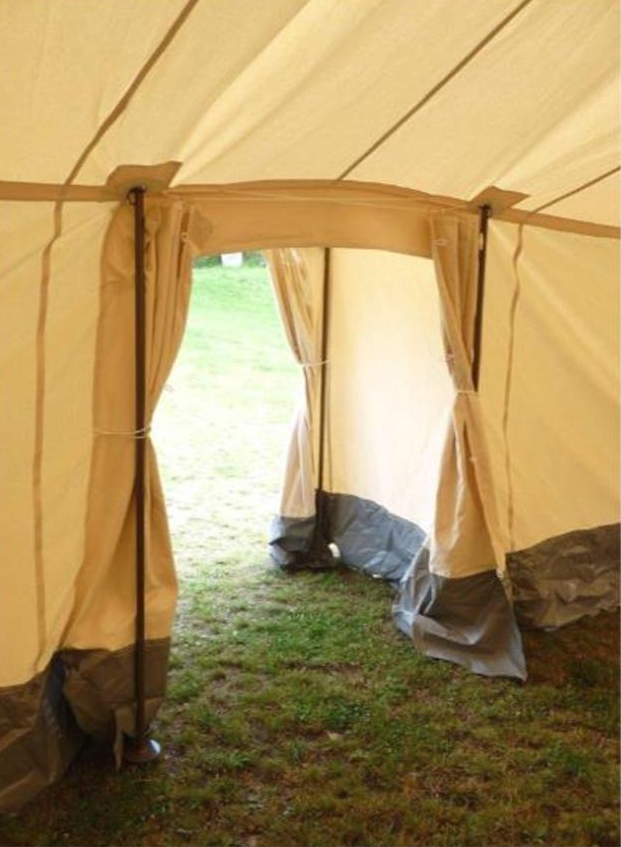

• the front/rear part is equipped with an entrance shelter, which forms a vestibule, which is closed from the outside and inside with zippers,
• a nylon/nylon/PVC apron is sewn on the lower edge of the walls, including the shelter,
• olives are sewn on the reinforcing straps of the eaves edge for attaching the warming and hygienic insert of the S-65 tent,
• cords/fabrics are sewn on each wall, with which the parts are tied to the side supports,
• the openings for the side and middle supports are reinforced with metal eyes

Extension part

• base dimensions 6 m x 3 m; other dimensions according to the drawing documentation;
• window on both sides with the possibility of placing a plexiglass panel measuring 49 cm x 57 cm, mesh 250g/m² with a strength of 1900N/5cm strip in the warp and 1825N/5cm strip in the weft, window cover (rolled up above each window) made of tent material;
• compatibility of connection with the front and rear parts;
• use throughout the year in the range of outdoor temperatures from -35 to +70 °C and relative humidity from 30 to 80%;
• possibility of attaching a warming and hygienic insert to the olives on the inner wall of the tent.
• olives are sewn onto the reinforcing straps of the eaves edge for attaching the warming and hygienic insert of the S-65 tent,
• on each cords/fabrics are sewn to the wall, with which the parts are tied to the side supports,
• the holes for the side and middle supports are reinforced with metal eyes,
• the part is equipped with 2 holes for inserting windows,

Cover for ČP, ČZ and N part of the S-65 tent

• are made of one piece of tarpaulin,
• PVC material
• for each part separately,

Materials for making the tent

• PVC VARIANT: PES tarpaulin with a double-sided PVC coating with a non-flammable, hydrophobic and fungicidal treatment, 600-700g/m2, color 6003/6031 RAL – matte surface of the front side
• TENT OPTION: cotton tent, dyed, antifungal, hydrophobic, non-toxic, in khaki or white; weight according to customer requirements
